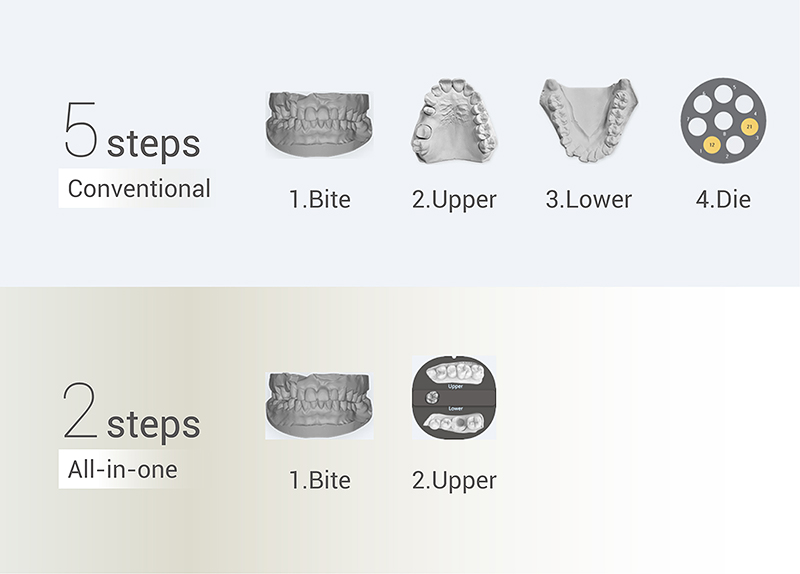

Single jaw 9.5s (10 shot), occlusion 5s (3 shot) ; the entire process of scanning a sectioned model order is 62s, and the entire process of an unsectioned model order with high quality is 56s.

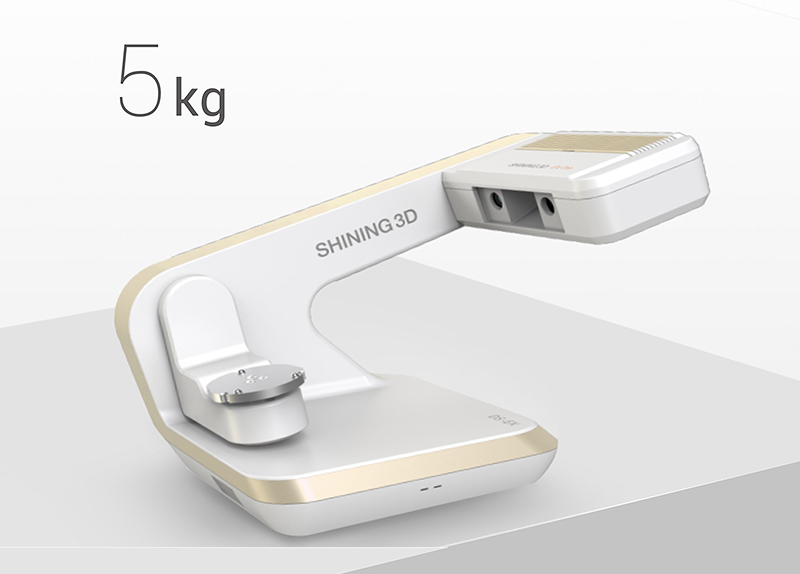

Simplifed shape, weight is only 5KG; modular design, all-around scanning.

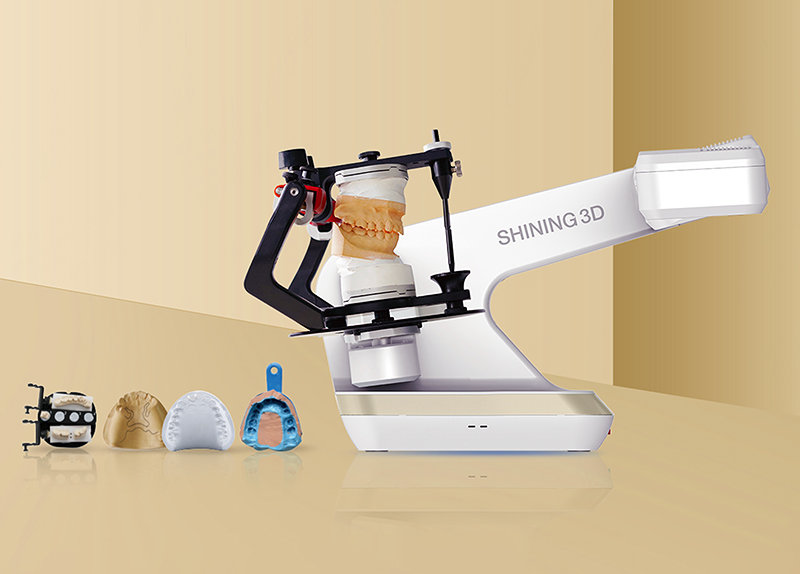

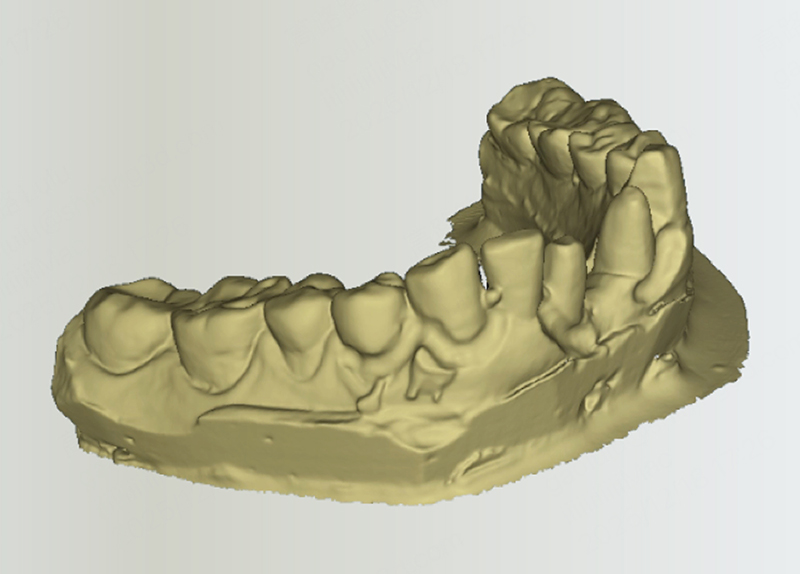

Supports most digital dental applications, including wax scan, die scan, plaster model scan, impression scan, articulator scan, texture scan etc.
Export stl, obj, ply format, high compatibility with current open CAD dental design softwares in the market.


With increased scan speed, a single jaw scan can be finished in 12 seconds. The entire process of a separate-die order can be completed within 2 minutes and a non-separated-die order within 2.5 minutes.

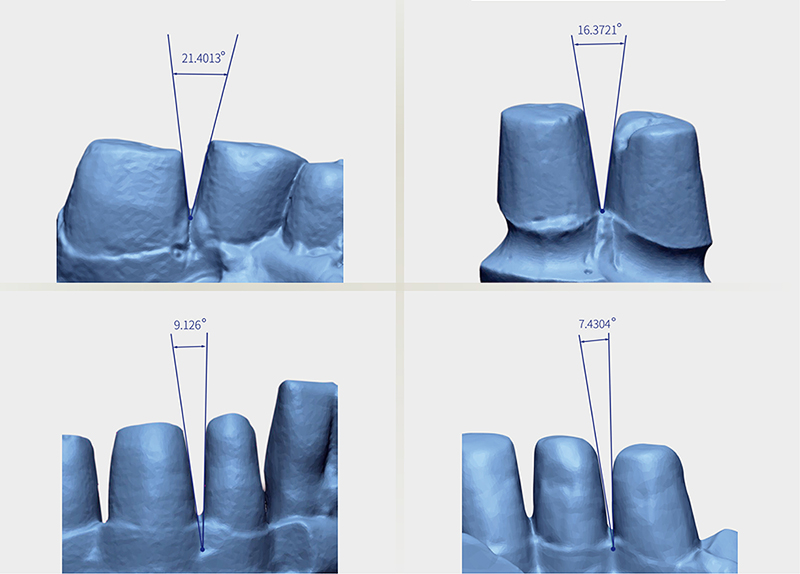

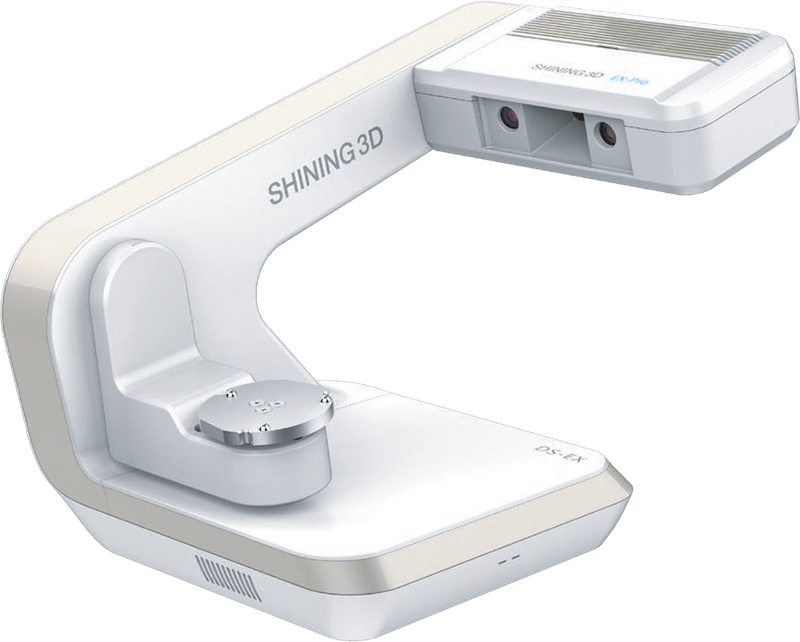

When it comes to gaps, the AutoScan-DS-EX Pro can compute an optimized scan path and rescan to fill the unscanned holes automatically. Users don’t have to rescan manually.


Intelligent path planning for non-separated model scan ensures optimum scan results and higher efficiency.





| Camera Resolution: | 2.4MP |
| Accuracy: | < 10µm |

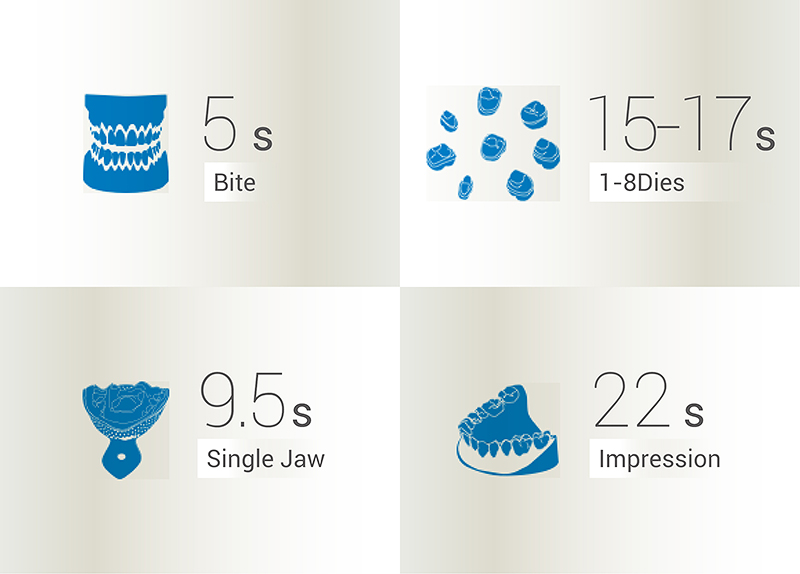

| Scan Time: | bite(3shot) 5s, upper/lower(10 shot) 9.5s, 1~4 dies (18shot) 15s, 5~8 dies (22shot) 17s, impression (28shot) 22s |

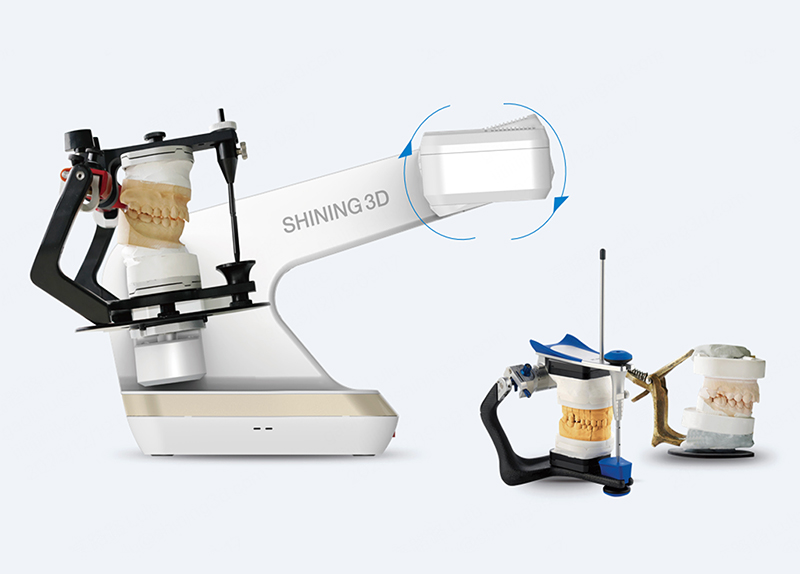

| Dynamic Scan: | Articulators are supported, scan head swings by 0~5 degrees |
| Output Format: | STL, OBJ, PLY |
| Light Source: | Blue Light |
| Dimensions: | 260 x 270 x 420 mm |
| Weight: | 5kg |
| Interface: | USB 3.0 |
| Power Supply: | DC 24V |
