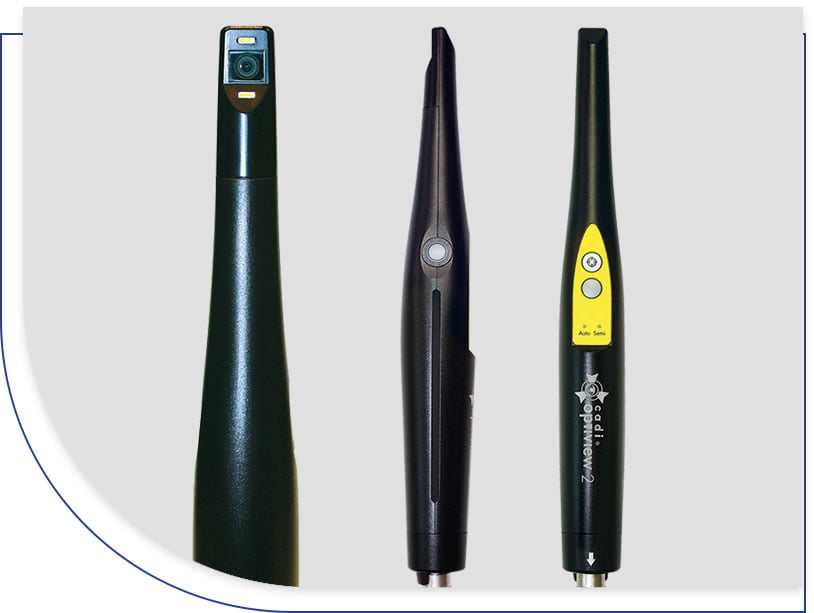

The intra-oral camera is possibly the most useful tool for communicating with your patients. CADI® Optiview 2 was designed and developed to provide the absolute best and most convincing images for you and your patients. The single tooth and close-up macro images are unsurpassed in making patients aware in real time what the dentist is explaining.

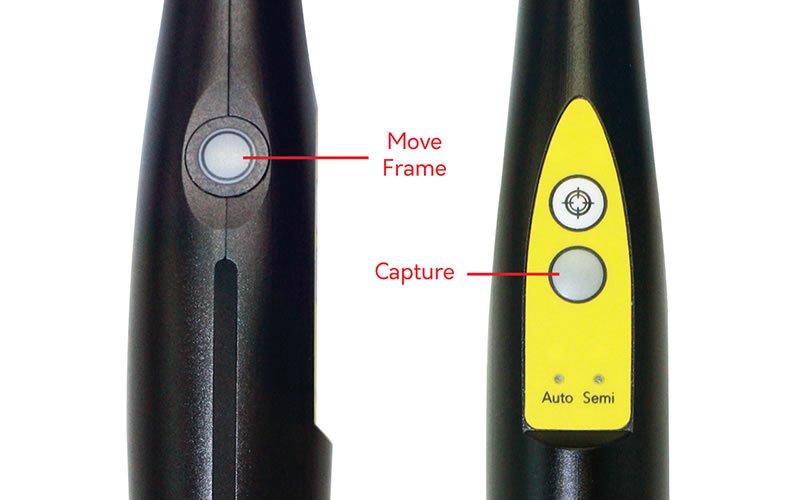

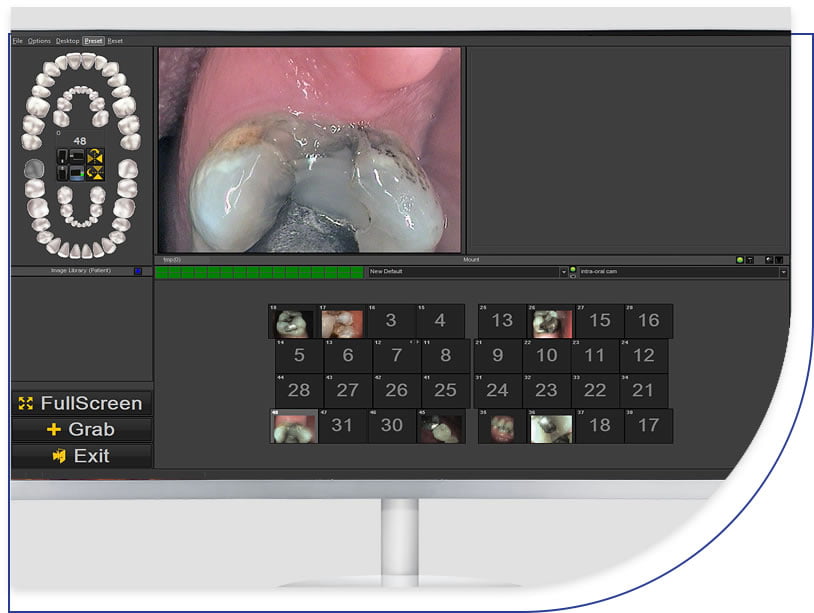

Easily capture and save images by tooth number in a mount CADI-integrated intra-oral camera, allows the user storage capability without interaction with the computer. Simply press the “move frame button” and captured images will be saved to the correct tooth number. This unique feature saves a tremendous amount of time, improves workflows and encourages ongoing use of the camera for every patient.
FULL 1080 HD RESOLUTION
Most intra-oral cameras are single focus, simply taking images at a set distance with a limited depth-of-field. They are not so easy to use, especially with barrier sheaths in place.
CADI® Optiview 2 is a true autofocus camera, offering full face to close-up macro images to show highly detailed images at any distance. The user has the option of auto-detection of need to focus, or single press of a button to instantly focus at desired distance.
IMAGE QUALITY WITH AUTO-FOCUS
See for yourself the amazing image quality and the remarkable auto-focus feature of the CADI® Optiview 2.
(Demonstrated with the video stream from CADI®.)
The anti-fogging feature ensures that the camera lens is always fog-free and ready to capture images.
| Image sensor: | Sony progressive scan CMOS / 2 Megapixel |
| Resolution: | 1920 (H) x 1080 (V), 1080P |
| Focus type: | • Motorized sensor control by stepping motor • Automated, or one-button re-focus |
| Capture system: | Smart Freeze button |
| CADI integration: | Control of CADI mount with one of the Smart buttons |
| Day & night: | IR cut filter system |
| Illumination: | High luminance white chip LEDs |
| Digital output: | 16-bit |
| Power supply: | DC 5 V from USB port |
| Handpiece weight: | 97 g |
| Handpiece length: | 213 mm |
| Cable length: | 2.7 m |
| Warranty: | 24 months |
CADI POM (Peace of Mind) is a comprehensive program to supply state of the art x-ray and imaging software, as well as service, support and discounts for all your x-ray and intra-oral camera products.
Software value of up to $8000, upgrade maintenance value of $1000 per year
There is no need to buy your imaging software up front. You will be supplied with a license to use CADI on all your workstations. In addition, the programming team works continually to improve and update CADI. You not only benefit from new features, but you also maintain your x-ray and imaging system compatible with the continual changes in dental imaging equipment, PCs and networks, and the Windows operating environment.
Value of $112 per call/issue
Your CADI technical support team will provide you with unlimited technical support calls to deal with all issues related to the satisfactory operation of your CADI software and imaging and x-ray equipment used on the CADI system. Note that some issues relating to the functioning and troubleshooting of non-Synca x-ray and imaging equipment must be resolved by the respective equipment vendor.
Value of $250-$500 per incident
For X-ray sensors, intra-oral cameras and other imaging equipment that is repairable, both during and post-warranty, you will benefit from a free loaner product, while your existing product(s) is being serviced. An identical or similar product will be provided for the duration of the repair.
You will receive: Free shipment of loaner equipment to your office, free return of your defective product to Synca, free shipment of your replacement product to your office and a free return of your loaner product to Synca.
Minimum value of 15% off the already low direct purchase price
Should you experience failure due to accidental damage or other non-warranty failure, you can exchange your defective product for a new product with a new warranty at a special discounted price.
Minimum Value of 5% off the already low direct purchase price
You may purchase digital x-ray sensors, intra-oral cameras, and extra-oral imaging equipment at low direct prices and, as a POM client, you will receive an additional discount.
Smart SOLUTIONS for your success!
